STEEL & ALUMINIUM SERVICE CENTER


YARALI Steel Co. provides advanced sheet material processing service with is fully equipped machine park which possesses 3 cut-to-length, 3 coil slitting, 3 plate slitting, 3 guillotine shearing and 1 straightening machines.


The following types of sheet materials can be processed at our facility.



* Galvanized Steel

* Electro Galvanized Steel

* Embossed Steel

* Aluminium

* Embossed Aluminium

* Textured Aluminium

* Aluminium Foil

* Hot and cold rolled

* PVC coated and painted

* Stainless steel

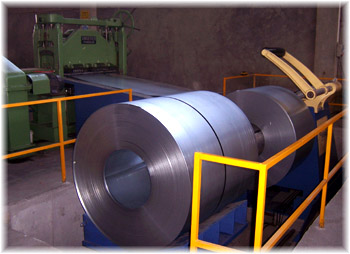

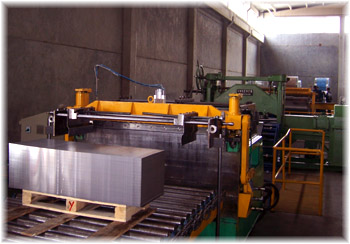

Cutting lines:

Sheet materials can be cut and straightened in accordance with the Erdemir Steel standards.



Gauge: 0.2~2.0mm

Width: 100~1400mm

Coil Internal Dia.: 480~570mm

Coil Outer Dia.: Max. 1700mm

Weight: Max. 20tons

Tolerances: ± 1mm

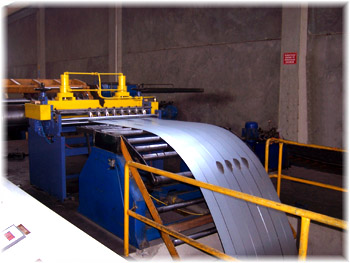

Slitting Lines:

Sheet materials can be re-rolled according to the weight and slitted in accordance with the Erdemir Steel standards.



Gauge: 0.3~2.0mm

Width: 10~1500mm

Coil Internal Dia.:480~570mm

Coil Outer Dia.: Max. 1700mm

Weight: Max. 17tons

Tolerances: ± 1mm





Plate Slitting Line:

Gauge: Max. 2.0mm

Width: Max. 1950mm

Guillotine shearing:

Gauge: Max. 4.0mm

Width: Max. 2350mm

Straightening Line:

Gauge: Max. 2.0mm

Width: Max. 1100mm



Narrower and thicker materials can be processed on special customer requests.
