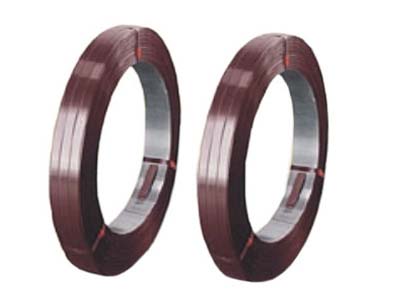

STEEL PACKING
STRIP
Structural steel sheet materials,
which are sourced from approved and reputable
suppliers and passed the acceptance quality control,
are converted to high quality packing steel strips
by employing a patented, environment friendly
technology. Our unique production technique enables
us to preserve the strength of the strip while
increasing the ductility.
Click here for the technical
data sheet of our products.
|
Technical Specifications |
|
Production Standard |
EN 13246:2001 |
|
Standard Dimensions (gauge x width) |
0,50mm 16mm |
0,50mm 19mm |
0,60mm 16mm |
0,60mm 19mm |
0,70mm 19mm |
0,80mm 19mm |
0,80mm 31,75mm |
0,90mm 31,75mm |
1,00mm 31,75mm |
|
Min.Tensile
Strength (N/mm2) |
750 |
750 |
750 |
750 |
700 |
700 |
700 |
700 |
700 |
|
Min.Tensile Load Limit (N) |
6000 |
7125 |
7200 |
8550 |
9310 |
10640 |
17780 |
20002 |
22225 |
|
Minimum Elongation (%) |
1,0 |
1,0 |
1,0 |
1,0 |
1,0 |
2,0 |
2,0 |
2,0 |
2,0 |
|
Length (m) / 1kg. strip
|
15,9 |
13,4 |
13,3 |
11,2 |
9,6 |
8,4 |
5 |
4,5 |
4 |
|
Packing |
50kg/coil, wrapped by waterproof paper
with core support |
50kg/coil,
wrapped by waterproof paper |
|
Total Length (m) |
795 |
669 |
662 |
558 |
478 |
418 |
250 |
222 |
200 |
|
Pallet Weight |
600kg.(12 coil/pallet) |
1000 kg. (20 coil/pallet) |
|
Prepainting |
Chrome free & Clean & Meneviž |
|
Surface Treatment |
Deburred edges / Black painted and waxed
(High resistance against scratching)
Corrosion resistance: 50-400 hours (ISO
9227) |
|
Dimensional Tolerances (EN 13246:2001) |
|
Thickness Widt (mm) |
Min.
Thickness (mm) |
Max.
Thickness (mm) |
Min.
Width (mm) |
Max.
Width (mm) |
|
0.50 x 16 |
0.465 |
0.535 |
15.750 |
16.050 |
|
0.50 x 19 |
0.465 |
0.535 |
18.800 |
19.200 |
|
0.60 x 16 |
0.565 |
0.635 |
15.750 |
16.050 |
|
0.60 x 19 |
0.565 |
0.635 |
18.800 |
19.200 |
|
0.70 x 19 |
0.660 |
0.740 |
18.800 |
19.200 |
|
0.80 x 19 |
0.760 |
0.840 |
18.800 |
19.200 |
|
0.80 x 31.75 |
0.760 |
0.840 |
31.600 |
32.000 |
|
0.90 x 31.75 |
0.860 |
0.940 |
31.600 |
32.000 |
|
1.00 x 31.75 |
0.960 |
1.040 |
31.600 |
32.000 |
|
